Description
This Item is located at our Southern California warehouse. For questions please contact: Leslie@ 909-855-6888

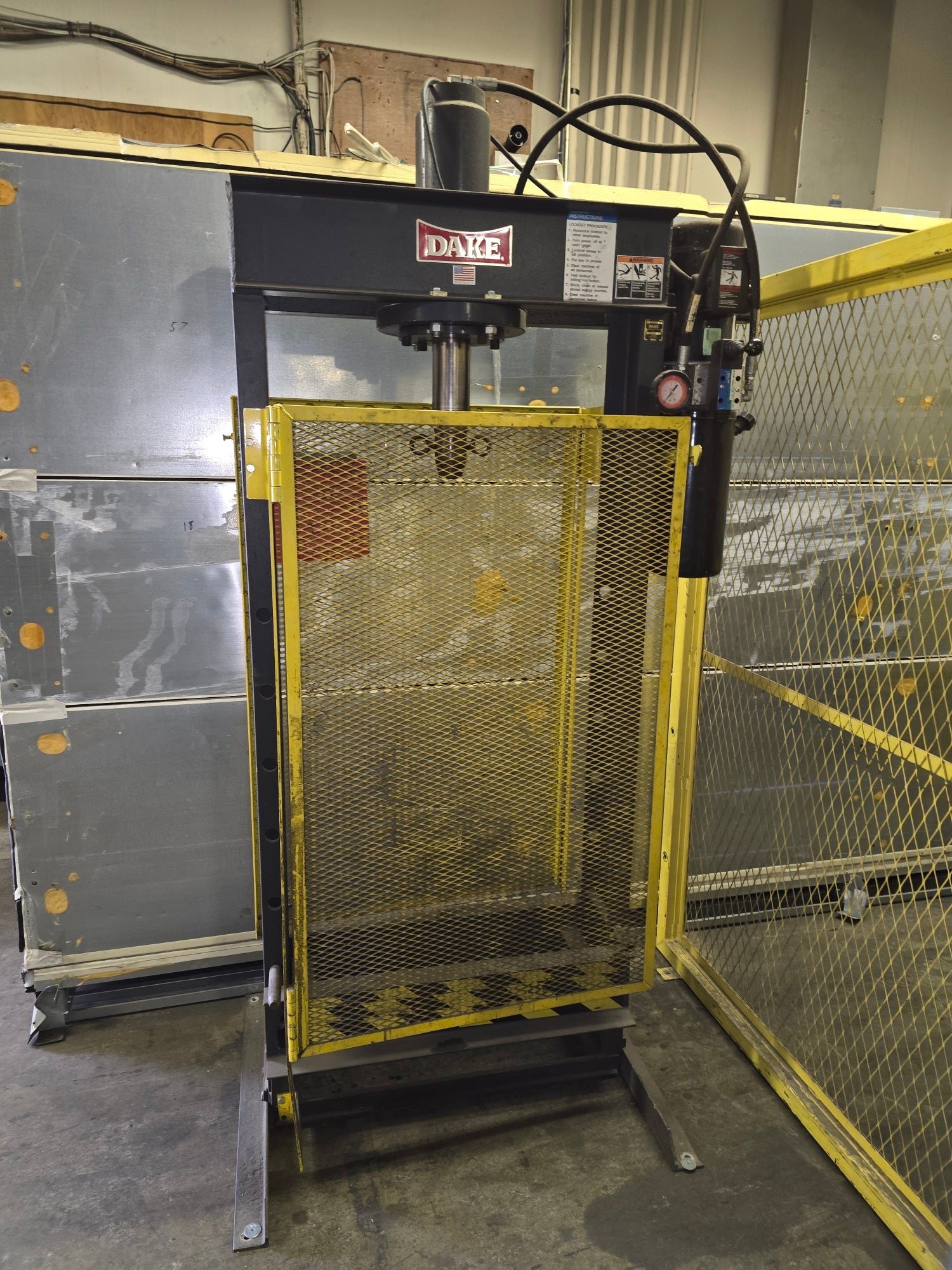

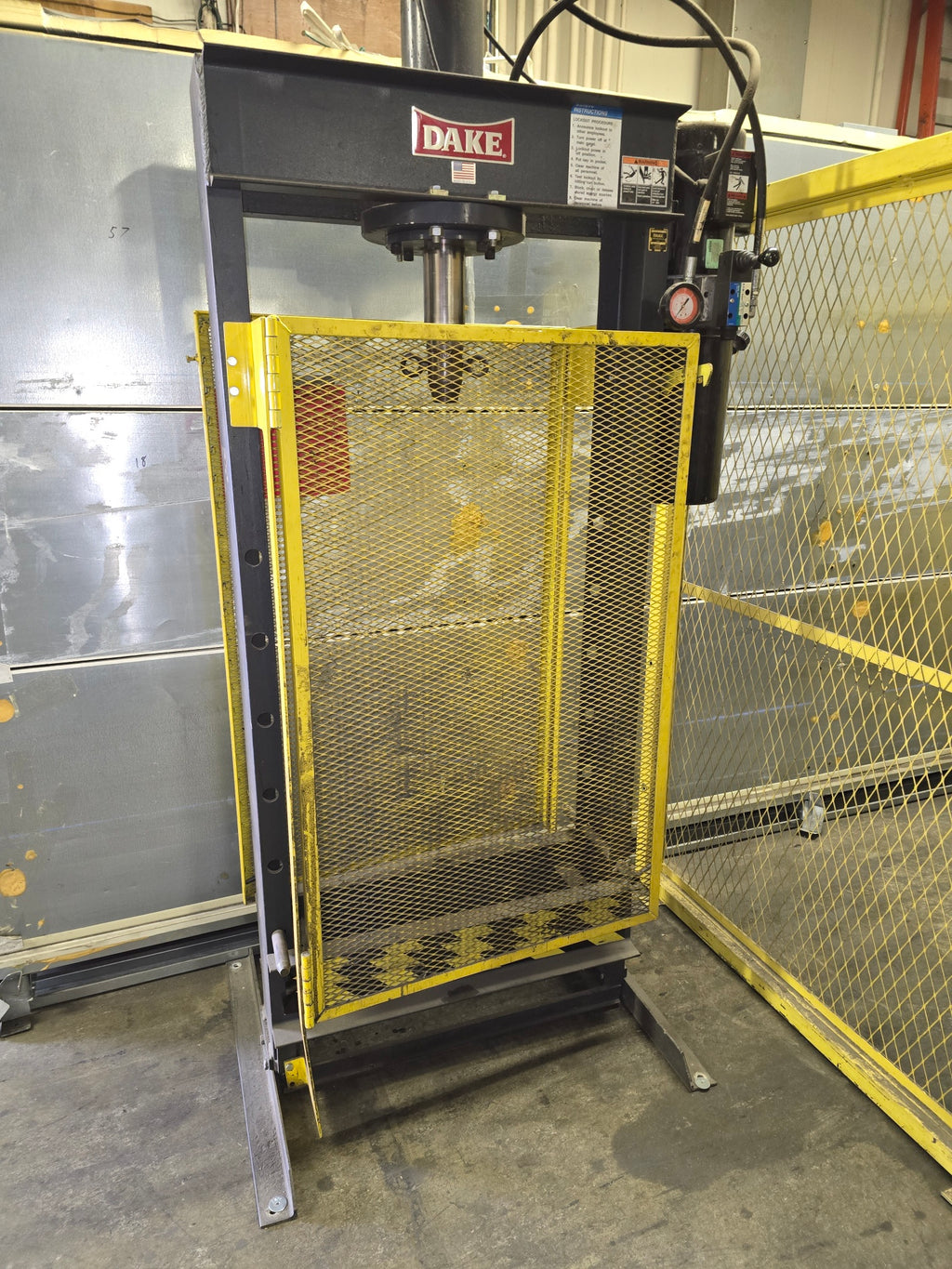

Dake Dura-Press Single Phase Hydraulic Press
25 Ton - FORCE-25DA
909215
Features:
- Electric power unit has convenient single phase, 110 volt operation for greater portability.
- Lever control ram advance for easy operation.
- Double acting cylinder allows for convenient positioning of ram.
- Sturdy, welded channel iron frame for durability.
- Quiet, low pressure hydraulic components for greater efficiency and smooth pressing.
- One hand ram positioning with 4-way valve hydraulic control.
Model Force 25DA - 25 Ton Capacity
25 ton electrically operated hydraulic dura-press powered by a 110V motor. Table height adjusts for proper positioning with included lifting chain. The three-point lever provides single-handed control over ram movement. A double-acting cylinder moves the ram during the downstroke and the return, providing smooth movement in both directions and enabling precise positioning.
| Model | FORCE 25DA |
| Part Number | 909215 |
| Capacity | 25 tons |
| Operation | Electric |
| Horsepower | 1 |
| Voltage | 110V, Single Phase |
| Width between uprights | 28” |
| Width between table channels | 7” |
| Minimum ram to table | 8” |
| Maximum ram to table | 44” |
| Ram travel | 10” |
| Screw Travel | n/a |
| Horizontal workhead travel | Fixed |
| Footprint | 30” x 38” |
| Height | 88” |
| Weight | 570 lbs |
| Base | 30” x 38” |
| Ram advance speed | n/a |
| Pressing speed | 10 ipm |
| RPM | 3,450 |
| Air Pressure | n/a |
