Double Rack Oven | LBC | Model # LRO-2G | NG/120V

AVAILABLE AT SAM PHOENIX

Contact Jim Today
(602) 907 5336

Hood Included

2015

Construction Features:
● Heavy-duty stainless steel interior and exterior
● Cooking compartment insulated with 5” high-temp insulation
● Automatic, heavy-duty “B” style lift and gear-driven rotation system
● Heavy-duty door with 21” x 57.5” double pane viewing window
● Interior door safety release mechanism

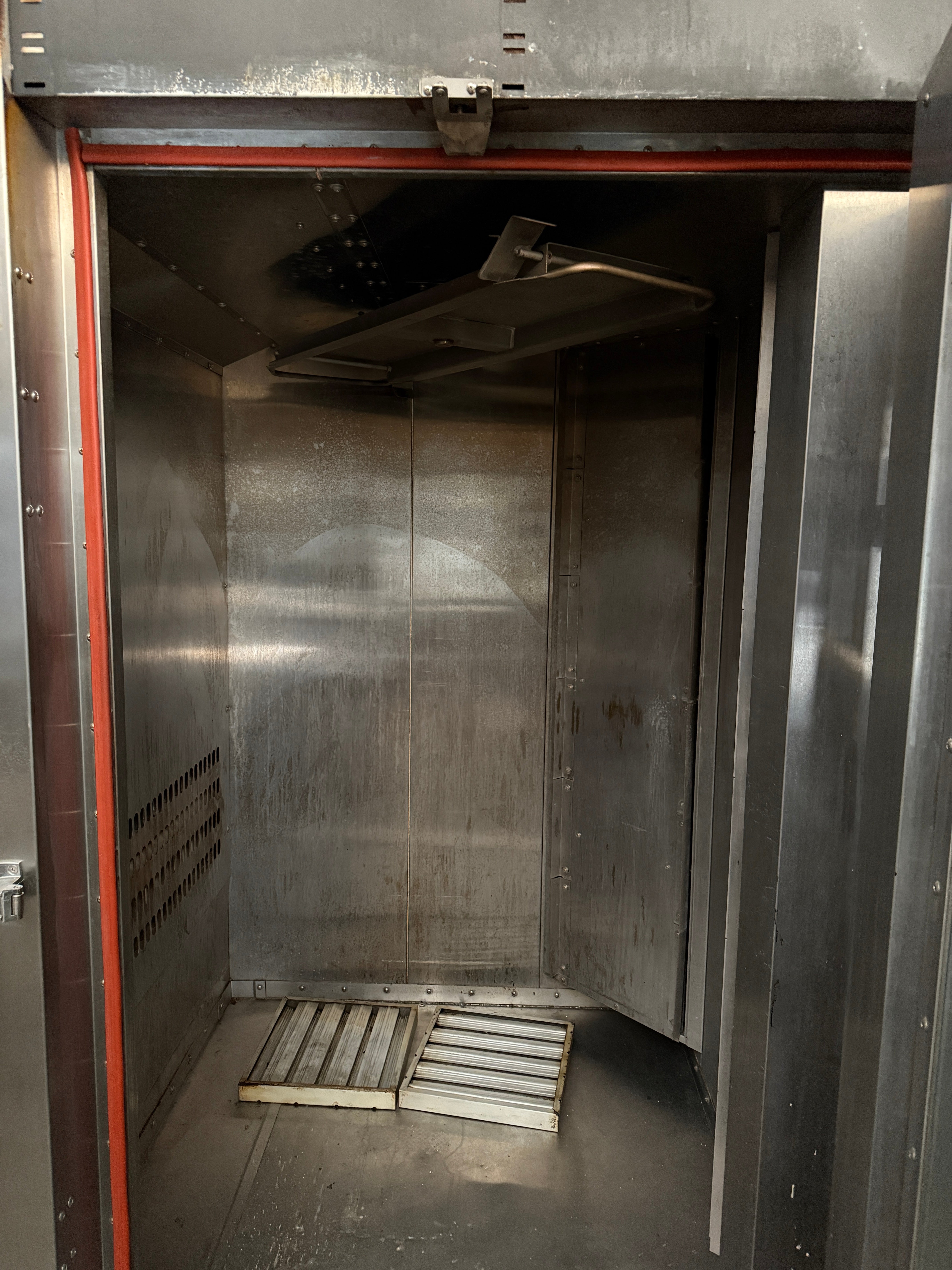

● Oven accommodates two single racks or one double rack
● Reversible Door Swing
Performance Features:
● Energy Star Certification
● 100-525 deg F temperature range
● Linear counterflow heat exchanger
● Burner manifold uses in shot burners with hot surface igniter
● High volume, waterfall steam system
● Three-point, air circulation system with adjustable shutters
● Exhaust heat recovery system increases fuel efficiency
● Self-adjusting clutch protects operator and prevents damage
● Rack drive automatically stops, lifts and lowers with door operation
● Racks load at floor level (no ramp)
● Patent 10,314,315
Integrated Hood Features and Performance:
● Meets the construction requirements of NFPA 96 & UMC for Type I & II
Hoods (fire system, if required, shall be by others)
● Fully integrated hood with single point exhaust connection
○ Rooftop ventilator not included
● 20 ga fully welded stainless steel body construction
● 16.5 sqft hood capture area. Filter Velocity = 120 fpm @ 0.3” w.c. and
800 cfm
Integrated UL Listed Hood (Optional):
● Listed to UL 710 for heavy duty operation up to 525°F

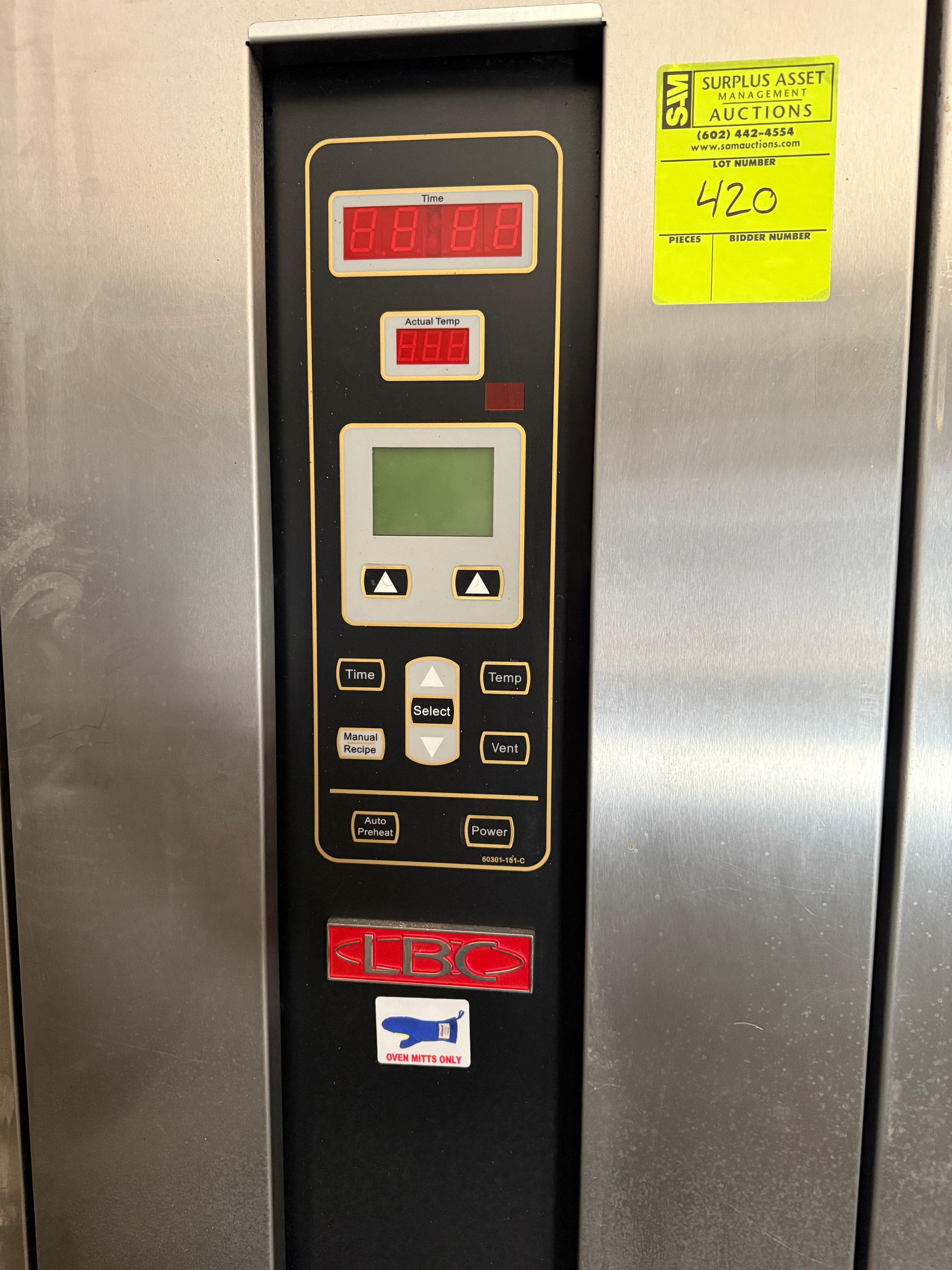

Control Features:
● Digital Display Control (Standard):
○ Two control modes with programmable features
> Single-step cooking mode:
» 40 programmable recipes with 6 quick select buttons
> 6-step cooking mode:
» 30 programmable recipes
○ Programmable features: Steam, Vent, Blower Delay and Pulse Air
○ Selectable Automatic Temperature Setback
● Manual Backup Control (Standard):
○ Manually control heat and blower, lights and rotation, and steam
