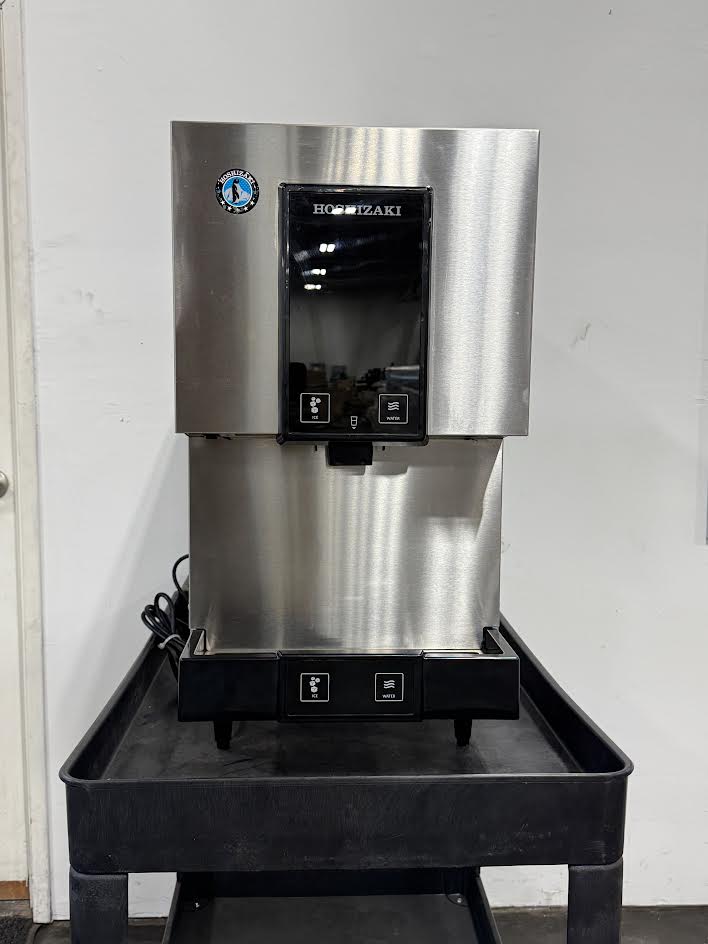

Ice Maker | Hoshizaki | Model # DMC-271BAH | 115 Volt

The Hoshizaki DCM-271BAH countertop nugget ice and water dispenser can produce 257 pounds of ice per day when environmental conditions are ideal. Its storage bin accommodates 10 pounds of ice for dispensing through the unit's removable spout. This dispenser sits on a countertop for self-service use in a hotel or cafeteria, filling cups as tall as 10.25 inches. To streamline installation, the refrigeration system is self-contained, and it operates with eco-friendly R-404A refrigerant.

To ensure ice in the Hoshizaki DCM-271BAH ice and water dispenser is clean for serving, a 2-second flush cycle is performed each hour to remove sediment and impurities. Many components are protected with H-GUARD Plus® antimicrobial to slow the formation of microbes. To help customers in wheelchairs access ice, LED touch buttons are included on the top and bottom of this Hoshizaki nugget ice maker's front panel.

Product Details

• 257-lb. ice production capacity
• 196-lb. AHRI-certified ice production capacity
• 10-lb. ice storage capacity
• Makes cubelet-style ice
• Nugget ice size: 0.63 in. x 0.50 in. x 0.25 in. x 0.38 in.
• Air-cooled, self-contained refrigeration system
• Countertop model
• Upper and lower LED touch buttons
• 10.25-in. cup clearance
• H-GUARD Plus antimicrobial agent
• CleanCycle24™ design
• 2-second flush cycle per hour
• Removable spout
• Stainless steel drain pan grate
• R-404A refrigerant
• 4-in. legs
• ADA compliant
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 3,300-BTU heat transfer capacity

Product Features

Dimensions & Utilities

• 16.63 in. W x 24.25 in. D x 31.75 in. H
• 8.50 A, 6.90 kW
• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
