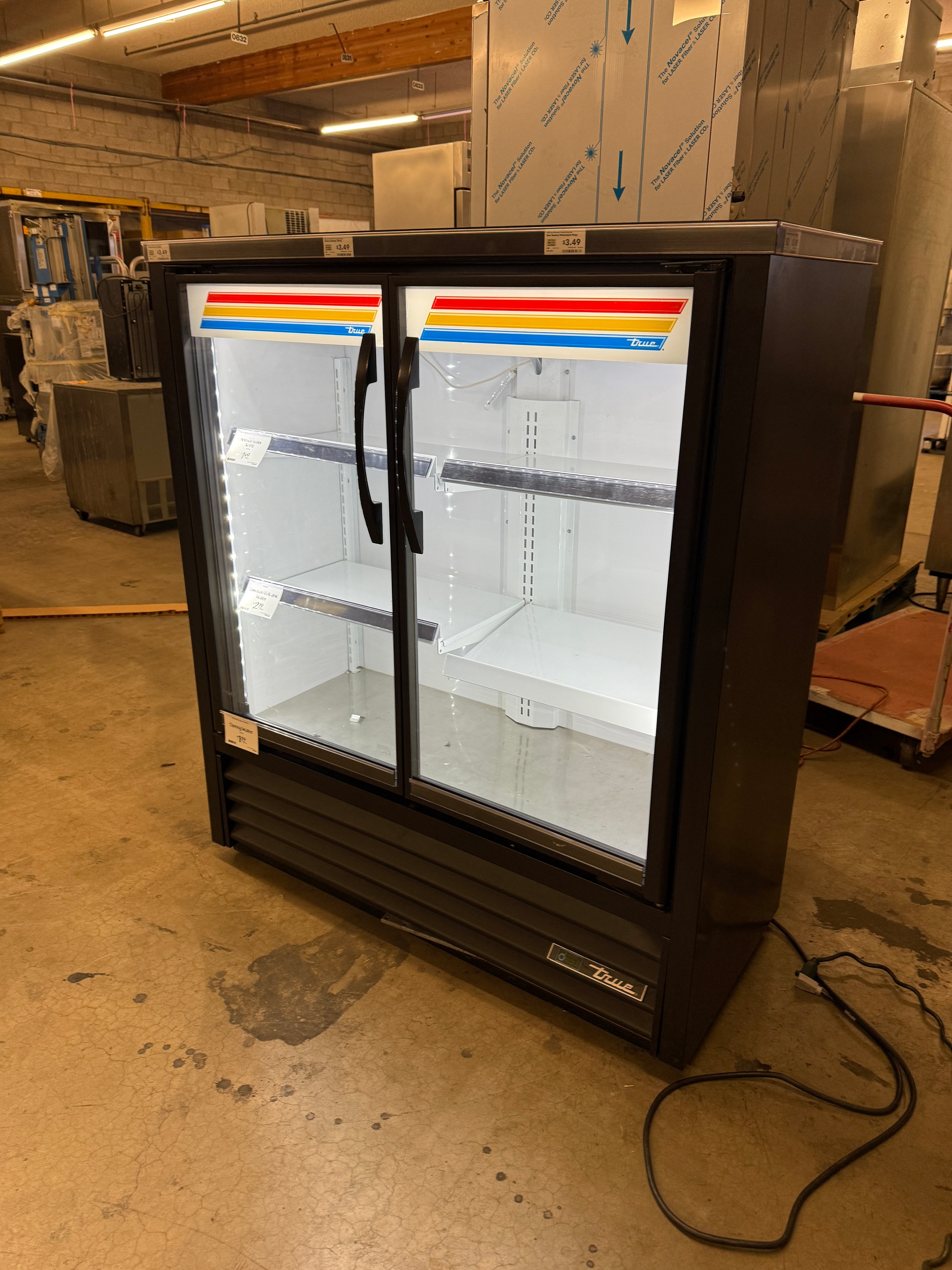

Merchandiser Checkout Cooler | True | Model TVM-485L-54-HC-VM01 | 115 Volts

Located in Phoenix
Contact Jim: (602) 907 5336

DESIGN
• True’s commitment to using the highest quality materials and factory balanced
refrigeration systems provides the user with colder product temperatures, and
lower utility costs in an attractive visual merchandiser that brilliantly displays packaged food and beverages.

REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
• High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
• State of the art, electronically commutated evaporator and condenser fan motors. ECM
motors operate at higher peak efficiencies and move a more consistent volume of air
which produces less heat, reduces energy consumption and provides greater motor
reliability.
• Bottom mounted condensing unit positioned for easy maintenance. “No stoop” lower shelf maximizes visibility by raising merchandised product to higher level.
CABINET CONSTRUCTION
• Exterior - non-peel or chip black powder coated; durable and permanent.
• Interior - attractive, white aluminum liner with stainless steel floor.
• Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero
global warming potential (GWP).
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
• Frame rail fitted with leg levelers.
DOORS
• Glass door assemblies with low profile door frame.
• Each door fitted with 12” (305 mm) long handle.
• Self closing doors.

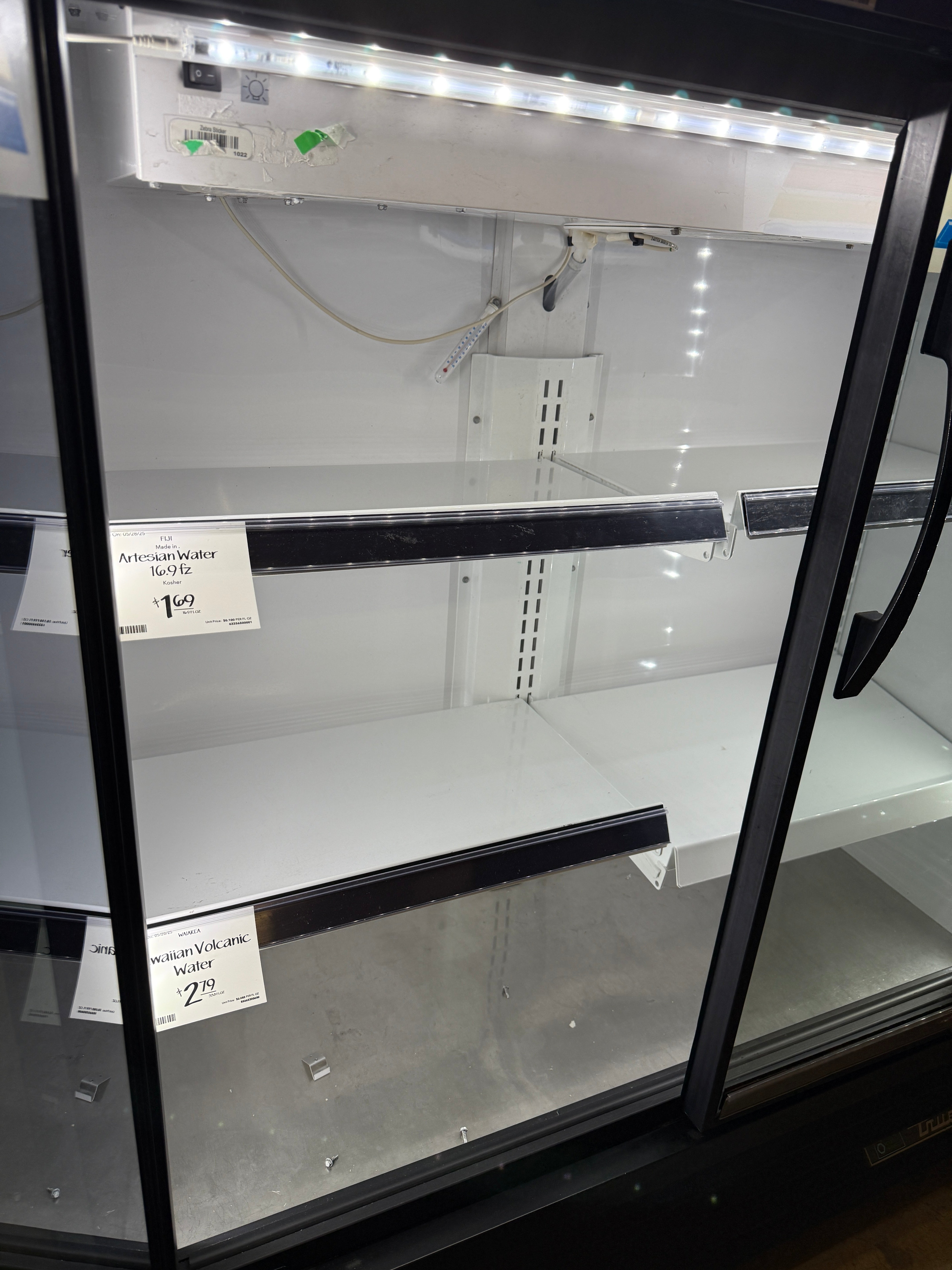

SHELVING
• Six (6) adjustable, cantilever shelves. 21 7/32”L x 14”D (541 mm x 356 mm)
• Shelf support pilasters made of same material as cabinet interior; shelves are
adjustable on 1” (26 mm) increments.
LIGHTING
• LED interior lighting provides more even lighting throughout the cabinet. Safety
shielded.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the potential of corrosion.
• Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or
bottled product.
ELECTRICAL
• Unit completely pre-wired at factory and ready for final connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and plug set included.
RECOMMENDED OPERATING
CONDITIONS
• Designed to operate in an environment where temperature and humidity do
not exceed 80°F (27°C) and 55% relative humidity.
